Açıklama

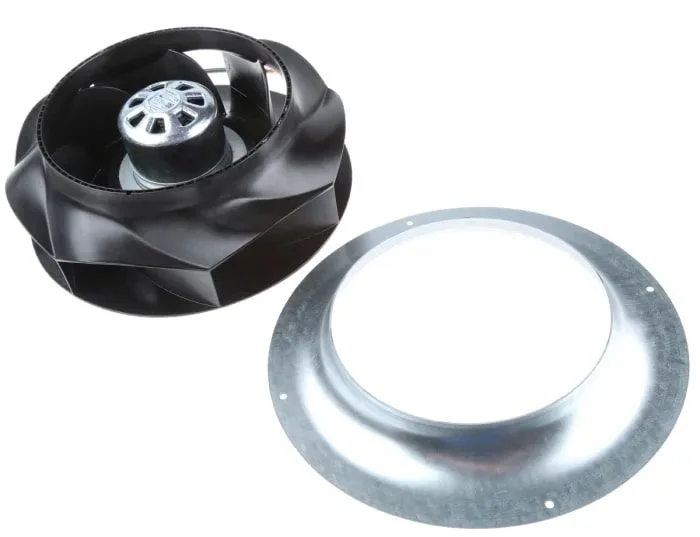

R3G250-RE07-07 EMİŞ AĞZI SIVAMA SACI – 96359-2-4013 almak isterseniz kombin üründen seçebilirsiniz.
PALET ÜSTÜ (adet) (Palet ölçüsü:120x80x115cm) 6 x 108’li palet, 1 x 71’li palet
Teknik Belgeler
R3G250-RE07-07 centrifugal fan Data Sheet
R3G250-RE07-07 centrifugal fan Operating instructions
Custom Fan Services
ErP Directive Brochure
Technical Description
| Weight | 1.13 kg |
|---|---|
| Motor size | 55 |
| Size | 220 mm |
| Rotor surface | Thick-film passivated |
| Electronics housing material | Die-cast aluminum |
| Impeller material | PP plastic |
| Number of blades | 7 |
| Direction of rotation | Clockwise, viewed toward rotor |
| Degree of protection | IP54 |
| Insulation class | “B” |
| Moisture (F) / Environmental (H) protection class | H1 |
| Max. permitted ambient temp. for motor (transport/storage) | + 80 °C |
| Min. permitted ambient temp. for motor (transport/storage) | – 40 °C |
| Installation position | Any |
| Condensation drainage holes | None, open rotor |
| Mode | S1 |
| Motor bearing | Ball bearing |
| Technical features | – Output 10 VDC, max. 1.1 mA – Tach output – Power limiter – Motor current limitation – Soft start – Control input 0-10 VDC / PWM – Control interface with SELV potential safely disconnected from the mains – Overvoltage detection – Thermal overload protection for electronics/motor – Line undervoltage detection |
| EMC immunity to interference | According to EN 61000-6-2 (industrial environment) |
| EMC circuit feedback | According to EN 61000-3-2/3 |
| EMC interference emission | According to EN 55022 (class B, household environment), the application may require ferritic damping in the cable due to the conditions of installation. |
| Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) | <= 3,5 mA |
| Motor protection | Electronic motor protection |
| with cable | Variable |
| Protection class | I (with customer connection of protective earth) |
| Conformity with standards | EN 60335-1 / UKCA / CE |
| Approval | UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / CCC |
Nominal data
| Phase | 1~ | |
|---|---|---|
| Type of voltage | AC | |
| Nominal voltage | in V | 230 |
| Nominal voltage range | in V | 200 .. 240 |
| Frequency | in Hz | 50/60 |
| Type of data definition | maximum load | |
| Speed | in min-1 | 2580 |
| Power input | in W | 85 |
| Current draw | in A | 0,7 |
| Min. ambient temperature | in °C | -25 |
| Max. ambient temperature | in °C | 60 |
