Açıklama

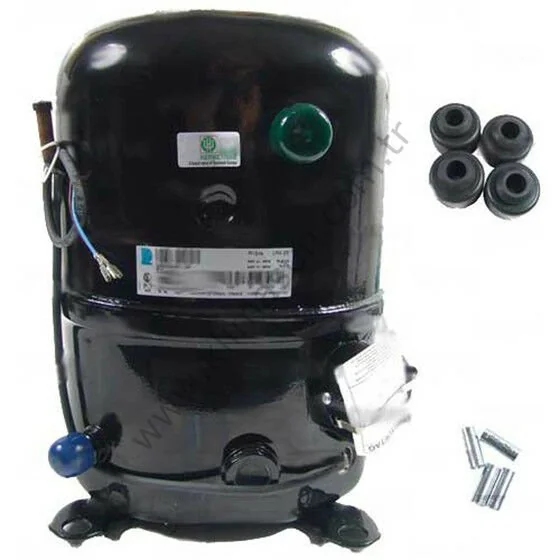

Compressor Tecumseh L` Ünite TFH4525Y, HBP – R134a, 400V, 50 Hz, 3 phase, discharge: 73 cm3, oil type: POE, oil charge: 1480 cm3, electrical equipment: 3 phase, cooling power: 5654 W at +5 / +50 °C, connection: suction: 5/8 inch, discharge: 1/2 inch, sound level: 73 dBA, expansion device: capillary or with expansion valve, cooling: forced, height: 354 mm, weight: 31 kg
Refrigerant:R134a
Power range(W):1 – 1,5 kW 5 – 7 kW
Connecting size:1/2″
Suction:5/8″
Working area:HBP
Application Area:Cooling
Design type:Hermetic
Model series:FH
Use with:Expansion/Capillary
Power supply:400 V
Oil type:POE
Engine type:CSR TRI
Article condition:New
Info:Oil filled
Shipping weight:33,00 kg
Content:1,00 Pieces
Dimensions ( Height ):35,40 cm
customs tariff number:84143081
Cooling capacity condition:EN12900, NK, R134a, T0 -10 C
Manufacturer:Tecumseh L` Ünite
Model:TFH4525Y
Stroke volume (cm3):74,25
Performance condition:+5 / +50 °C
Power (W):5654
Cooling capacity (W):1417
Max. Operating current (A):4,1
Engine type:TRI
dbA @ 1m:73
Note:Fan cooling necessary
Oil quantity (l):1,48
Compressor type:Piston
Suction (inch):5/8
Discharge (inch):1/2
