Characteristic:
- Reciprocating Compressor Model 0050800392
- Voltage 400-440V
- R-134A refrigerant
- 3Ph/ 50-60Hz
- Alternative Model: TAJ4461Y
- Alternate Model : AJ4YB1TF600, AJ4YB1TF600A10

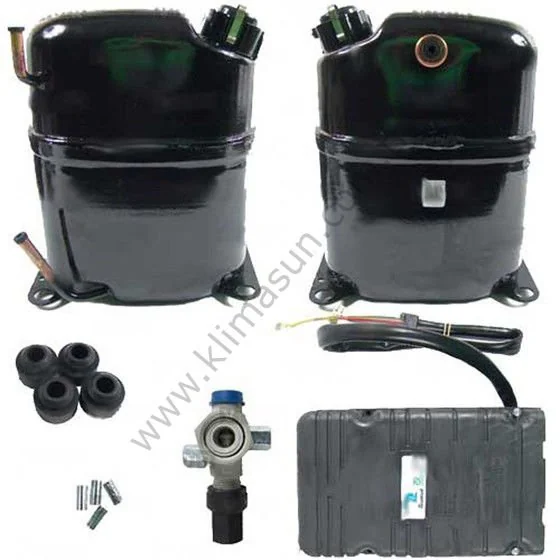

Cosmotec Compressor Model 0050800392 (TAJ4461Y, AJ4YB1TF600)
http://Erdinç Klima/files/YP/komp/taj4461y-tz.pdf
Compressor Tecumseh L` Ünite TAJ4461Y-TZ, HBP – R134a, 400V, 50 Hz, 3 phase, discharge: 18.3 cm3, oil type: POE, oil charge: 887 cm3, electrical equipment: 3 phase, cooling power: 1482 W at +5 / +50 °C, connection: suction: 1/2 inch,discharge: 1/4 inch, sound level: 56 dBA, expansion device: c apillary or with expansion valve, cooling: forced, height: 258 mm, weight: 19 kg
Refrigerant:R134a
Power range(W):401 – 500 W 1 – 1,5 kW
Connecting size:1/4″
Suction:1/2″
Working area:HBP
Application Area:Cooling
Design type:Hermetic
Model series:AJ
Use with:Expansion/Capillary
Power supply:400 V
Oil type:POE
Engine type:CSIR TRI
Article condition:New
Info:Oil filled
Shipping weight:21,00 kg
customs tariff number:84143081
Manufacturer:Tecumseh L` Ünite
Model:TAJ4461Y-TZ
Max. Operating current (A):1,3
Compressor type:Piston
