General Information
Manufacturer
Carrier
Manufacturer Part Number
30GTN070
Product Line

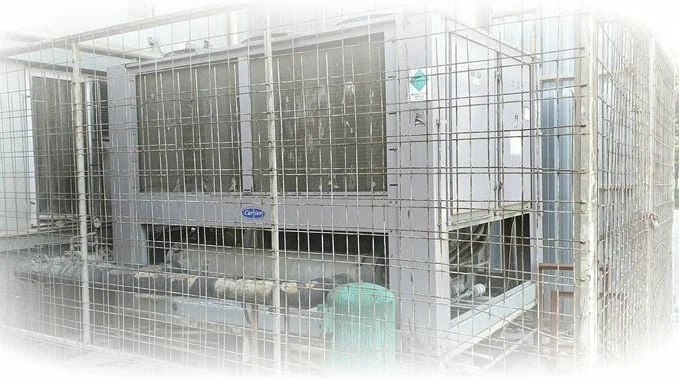

Package SystemsProduct Name30GTN070
Marketing Information
The 30GTN family of chillers feature Carrier’s 06E semi-hermetic reciprocating compressors, HCFC-22, ComfortLink microprocessor controls, low sound levels in a compact size.
Features
- Simple, easy to use, “Clear Language” controls
- 30% Faster start-ups with less training
- Multiple language display standard
- Optional hand-held Navigator display for faster troubleshooting
- Sound comparable with many screw chillers
- Capable of variable flow operation
- Wide operating range (-20° to 125° F)
- Carrier Comfort Network (CCN) ready
- Simple energy management interface to EMS/BMS systems
- 300 psig (2068 kPa) cooler waterside pressure rating
- ARI Certified Efficiencies/ASHRAE 90.1 compliant
- Over 35,000 worldwide installations
- Available with Enviro-Shield coil corrosion protection and E-Coat for superior protection from the most severe environments
Specifications
| MODEL | COOLING CAPACITY | DIMENSIONS | ||||||||
| 60 Hz | 50 Hz | Length | Width | Height | ||||||
| kW | Tons | kW | Tons | mm | ft | mm | ft | mm | ft | |
| 30GTN040 | 126 | 36 | 123 | 35 | 2515 | 8.3 | 2261 | 7.4 | 2261 | 7.4 |
| 30GTN045 | 146 | 42 | 147 | 42 | 2515 | 8.3 | 2261 | 7.4 | 2261 | 7.4 |
| 30GTN050 | 177 | 50 | 180 | 51 | 2515 | 8.3 | 2261 | 7.4 | 2261 | 7.4 |
| 30GTN060 | 223 | 63 | 212 | 60 | 3124 | 10.3 | 2261 | 7.4 | 2261 | 7.4 |
| 30GTN070 | 255 | 73 | 247 | 70 | 3124 | 10.3 | 2261 | 7.4 | 2261 | 7.4 |
| 30GTN080 | 288 | 82 | 285 | 81 | 3429 | 11.3 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN090 | 307 | 87 | 319 | 91 | 3429 | 11.3 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN100 | 350 | 100 | 352 | 100 | 4267 | 14.0 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN110 | 378 | 108 | 390 | 111 | 4267 | 14.0 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN130 | 426 | 121 | 434 | 124 | 5944 | 19.5 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN150 | 493 | 140 | 509 | 145 | 5944 | 19.5 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN170 | 553 | 157 | 557 | 158 | 5944 | 19.5 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN190 | 606 | 172 | 632 | 180 | 6858 | 22.5 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN210 | 707 | 201 | 703 | 200 | 6858 | 22.5 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN230 | 781 | 222 | 805 | 229 | 9354 | 30.7 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN245 | 802 | 228 | 787 | 224 | 9354 | 30.7 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN255 | 844 | 240 | 866 | 246 | 11887 | 39.0 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN270 | 900 | 256 | 909 | 259 | 10221 | 33.5 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN290 | 988 | 281 | 1022 | 291 | 12527 | 41.1 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN315 | 1087 | 309 | 1097 | 312 | 11906 | 39.1 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN330 | 1106 | 314 | 1113 | 317 | 11906 | 39.1 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN360 | 1213 | 345 | – | – | 13716 | 45.0 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN360 | – | – | 1188 | 338 | 12815 | 42.0 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN390 | 1313 | 373 | 1335 | 380 | 13716 | 45.0 | 2337 | 7.7 | 2438 | 8.0 |
| 30GTN420 | 1414 | 402 | 1407 | 400 | 13716 | 45.0 | 2337 | 7.7 | 2438 | 8.0 |
