– Product description

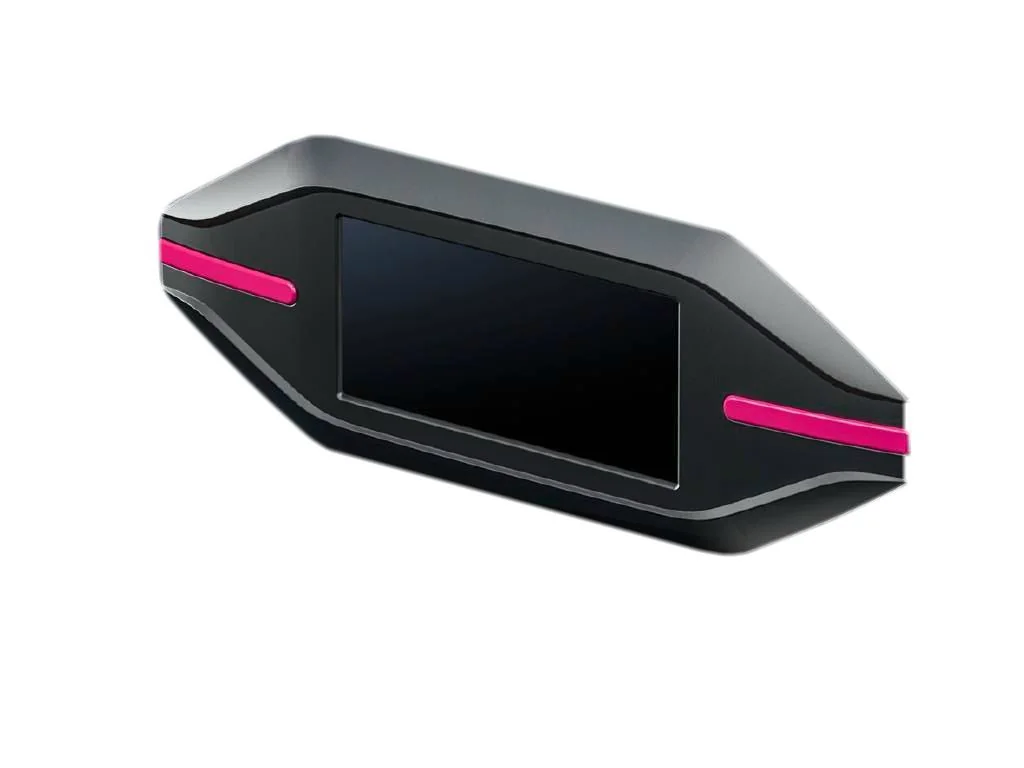

| Description: | The display frame allows the touch display of the roof-mounted cooling unit Blue e+ or the VX25 Blue e+ integration solution to be positioned in the enclosure door. |
|---|---|
| Benefits: | For positioning the display at the optimum operator height |
| Material: | Plastic |
| Colour: | RAL 7016 |
| Protection category IP to IEC 60 529: | IP 54 |
| Supply includes: | Display frame Blanking cover Assembly parts and sealing material |
| To fit Model No.: | 3185.030 3185.730 |
| Dimensions: | Width: 316 mm Height: 118 mm Depth: 27.5 mm |
| Packs of: | 1 pc(s). |
| Weight/pack: | 0.02 kg |
| EAN: | 4028177927131 |
| Customs tariff number: | 73269098 |
| ETIM 6.0: | EC002617 |
| ETIM 5.0: | EC002617 |
| eCl@ss 8.0/8.1: | 27189260 |
| eCl@ss 7.0/7.1: | 27189272 |
| eCl@ss 6.0/6.1: | 27189272 |
| eCl@ss 5.1/5.1.4: | 27180792 |
